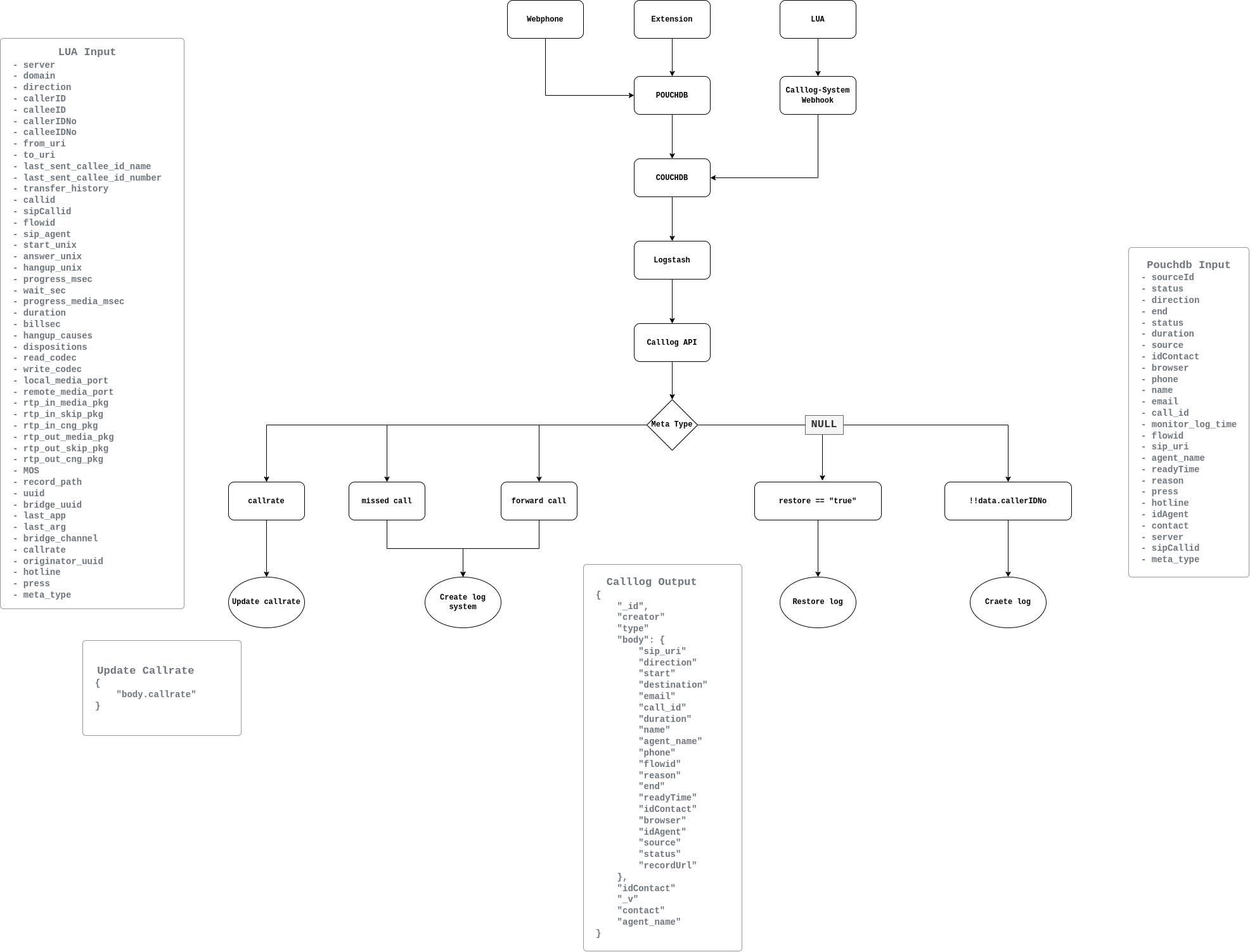

Raws Service

rawsService

I. Functionality​

  • Get calllog from the PBX, couchdb and add the calllog to the Gcalls database
  • Cron to get calllog from the gcalls app add it to the integrated CRM

II. Pacakages​

1. Dependencies​

  • Axios - Promise based HTTP client for the browser and node.js Axios
  • Dotenv - Dotenv is a zero-dependency module that loads environment variables from a .env file into process.env Dotenv
  • Express - Fast, unopinionated, minimalist web framework for node Express
  • Grok-js - Javascript implementation of Grok Grok-js
  • Morgan - HTTP request logger middleware for node.js Morgan
  • Nano - Nano is a minimalistic CouchDB driver for Node.js Nano
  • Node-cron - Cron for NodeJS Node-cron
  • Nodemon - Simple monitor script for use during development of a node.js app. Nodemon
  • Redis - Redis client for node Redis

III. Source tree​

.
├── app.js
├── auth-sf.json
├── config
│   ├── auth.js
│   ├── couchdb.js
│   ├── gcalls.js
│   ├── redis.js
│   └── sf.js
├── docker
│   ├── config
│   │   ├── elasticsearch.yml
│   │   ├── kibana.yml
│   │   └── pipelines-prod.yml
│   ├── docker-compose.yml
│   ├── local.ini
│   ├── nginx
│   │   └── nginx.elastic.conf
│   ├── pbx.lua
│   └── pipelines-prod
│       ├── couchdb.conf
│       └── redis.conf
├── Dockerfile
├── .dockerignore
├── .env
├── .gitignore
├── img
│   ├── CalllogAPI.png
│   ├── LogService.png
│   └── LUA.png
├── integration
│   ├── gcalls
│   │   └── index.js
│   └── salesforce
│       ├── globish.js
│       ├── index.js
│       ├── vinuni.js
│       └── zenyum.js
├── lib
│   ├── couchdbAxios.js
│   ├── couchdb.js
│   ├── gcalls.js
│   ├── redis.js
│   ├── schedule.js
│   └── sf.js
├── middleware
│   └── auth.js
├── package.json
├── package-lock.json
├── router
│   ├── calllog.js
│   ├── calllogSystem.js
│   ├── index.js
│   └── v1
│       ├── calllog.js
│       ├── calllogSystem.js
│       └── index.js
├── util
│   └── index.js
└── vinagcalls.lua

IV. Installation​

1. Install couchdb with docker​

1.1. Clone the repository and redirect to the folder​

    git clone https://gitlab.com/gcalls-opensource/publics/gcallsdb.git && cd gcallsdb/couchdb

1.2. Start couchdb with docker-compose​

    docker-compose up -d

2. Install logstash with docker​

2.1. Clone the repository and redirect to the folder​

    git clone https://gitlab.com/gcalls-opensource/publics/gcallsstack.git && cd gcallsstack/logstash

2.2 Start logstash with docker-compose​

    docker-compose up -d

2. Run service​

  • Install pm2
npm install -g pm2
  • Install package
npm install
  • Create file auth-sf.json into root directory to setup log system for tenant salesforce
[]
// if isn't use salesforce, let it empty
// or
[
    {
        "name": "",
        "sip": "",
        "auth": {
            "username":"",
            "password":"",
            "client_id":"",
            "client_secret":"",
            "host":"",
            "secure_token":"",
            "owner_id_missed": ""
        }
    }
]
  • Start service
npm start

V. End-point​

1. Calllog​

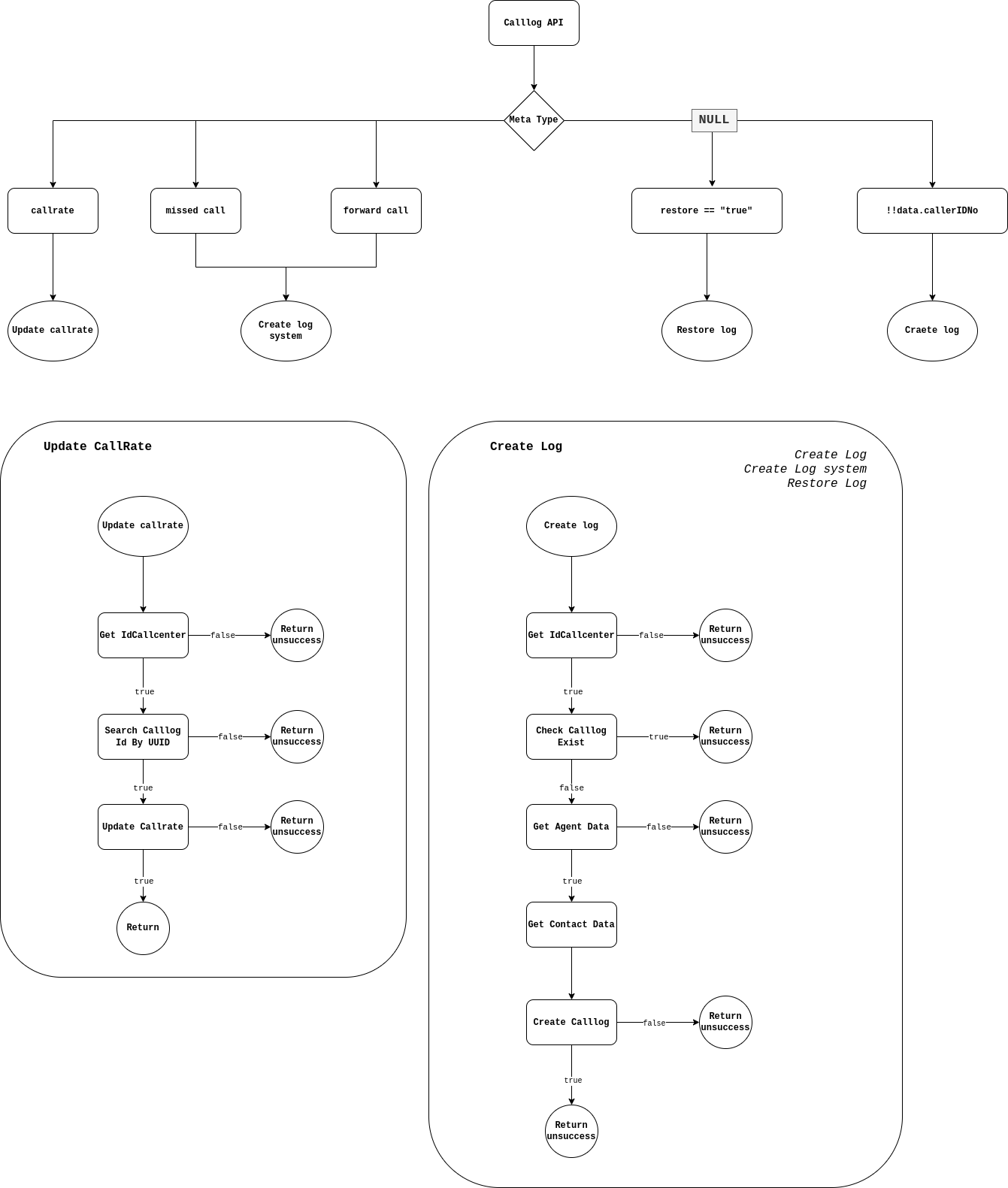

CalllogAPI

POST {{domain}}/calllog
headers: {
    Authorization: {{token}}
}

Body raw

{
  "server": "TEL4VN",
  "domain": "2-test1.gcalls.vn",
  "direction": "inbound",
  "callerID": "'0123456789' <0123456789>",
  "calleeID": "3001",
  "callerIDNo": "0123456789",
  "from_uri": "0123456789@125.235.28.181",
  "to_uri": "0909090909@103.226.249.14:50062",
  "transfer_history": "--3001/2-test1.gcalls.vn",
  "callid": "1969d007-2ef9-4996-97f8-f4131fa58986",
  "sipCallid": "69d2aea2-d1e7-123a-4789-3ca82a21b544",
  "flowid": "83464280-ac17-49b4-9dcc-2c90d1a30787",
  "sip_agent": "VCONNECT",
  "start_unix": 1638871257228.309,
  "answer_unix": 1638871257,
  "hangup_unix": 1638871262708.257,
  "progress_msec": 180,
  "wait_sec": 0,
  "progress_media_msec": "0",
  "duration": 5,
  "billsec": 5,
  "hangup_causes": "NORMAL_CLEARING,sip:200",
  "dispositions": "N_A,ANSWER,recv_bye",
  "read_codec": "PCMA@8000",
  "write_codec": "PCMA@8000",
  "local_media_port": "16940",
  "remote_media_port": "31108",
  "rtp_in_media_pkg": 246,
  "rtp_in_skip_pkg": 20,
  "rtp_in_cng_pkg": 0,
  "rtp_out_media_pkg": 263,
  "rtp_out_skip_pkg": 0,
  "rtp_out_cng_pkg": 0,
  "MOS": "4.50",
  "uuid": "1969d007-2ef9-4996-97f8-f4131fa58986",
  "bridge_uuid": "N_A",
  "last_app": "ivr",
  "last_arg": "ac01898e-490a-40bd-896b-34def0091d37",
  "bridge_channel": "N_A",
  "meta_type": "missed call",
  "source": "0123456789",
  "phone": "0123456789",
  "destination": "3001@2-test1.gcalls.vn",
  "pbxCustom": "0909090909",
  "extension": "3001",
  "sip_uri": "3001@2-test1.gcalls.vn",
  "status": "missed"

}

⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃ ⁃

2. Calllog-system​

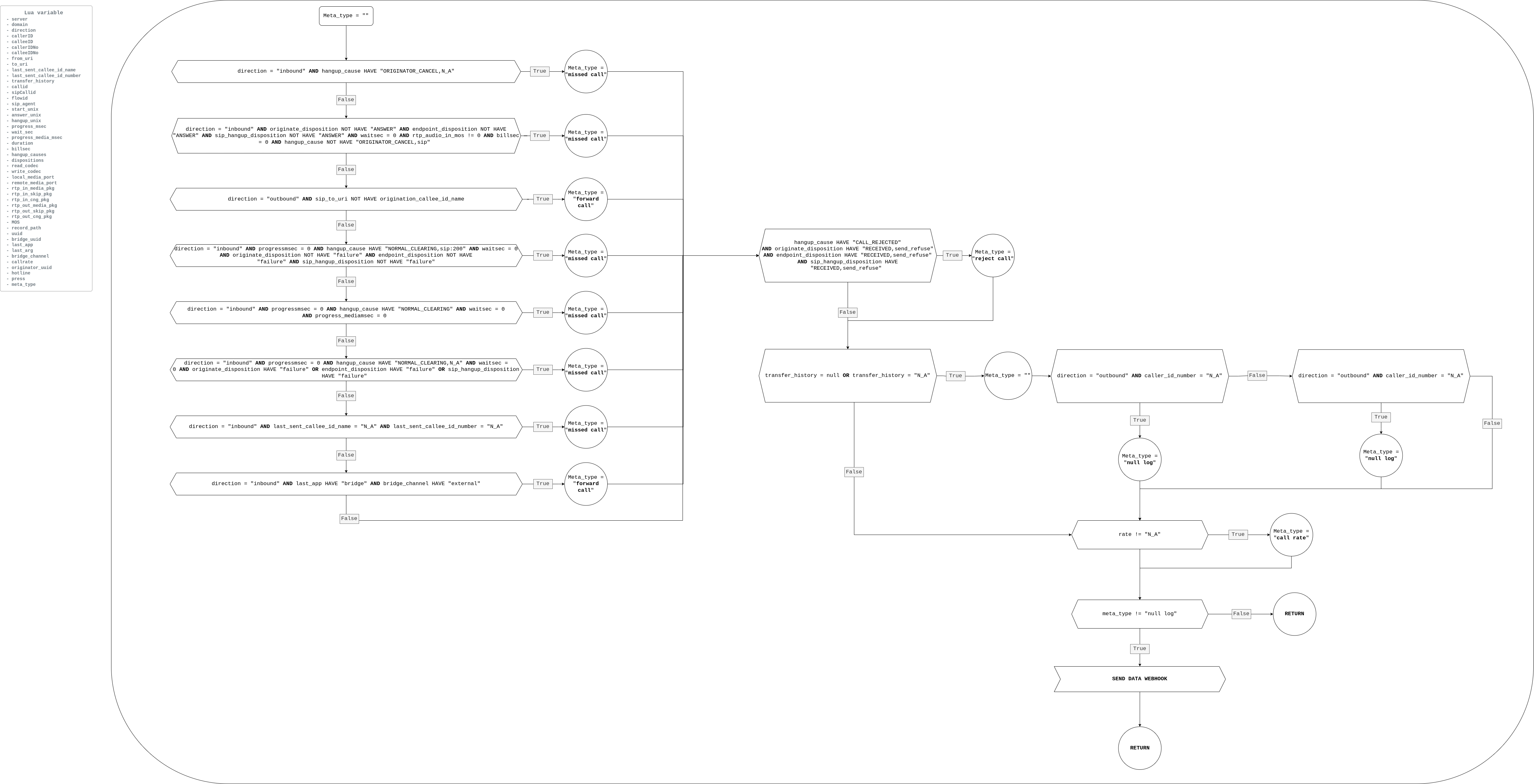

Lua file

POST {{domain}}/calllog-system/{{key}}

Body raw

{
  "TEL4VN#2-test1.gcalls.vn#inbound#'0123456789'
   <0123456789>#3001#0123456789#N_A#0123456789@125.235.28.181,0909090909@103.226.249.14:50062#N_A,N_A#--3001/2-test1.gcalls.vn#1969d007-2ef9-4996-97f8-f4131fa58993/69d2aea2-d1e7-123a-4789-3ca82a21b546/83464280-ac17-49b4-9dcc-2c90d1a30787#VCONNECT#1638871257228309,1638871257,1638871262708257/180,0,0#5,5#NORMAL_CLEARING,sip:200/N_A,ANSWER,recv_bye#PCMA@8000/PCMA@8000#16940,31108/246,20,0/263,0,0,4.50#N_A#1969d007-2ef9-4996-97f8-f4131fa58986#N_A#ivr#ac01898e-490a-40bd-896b-34def0091d37#N_A#missed call":""}
